SLIDE® Safety Gate-METALTEC

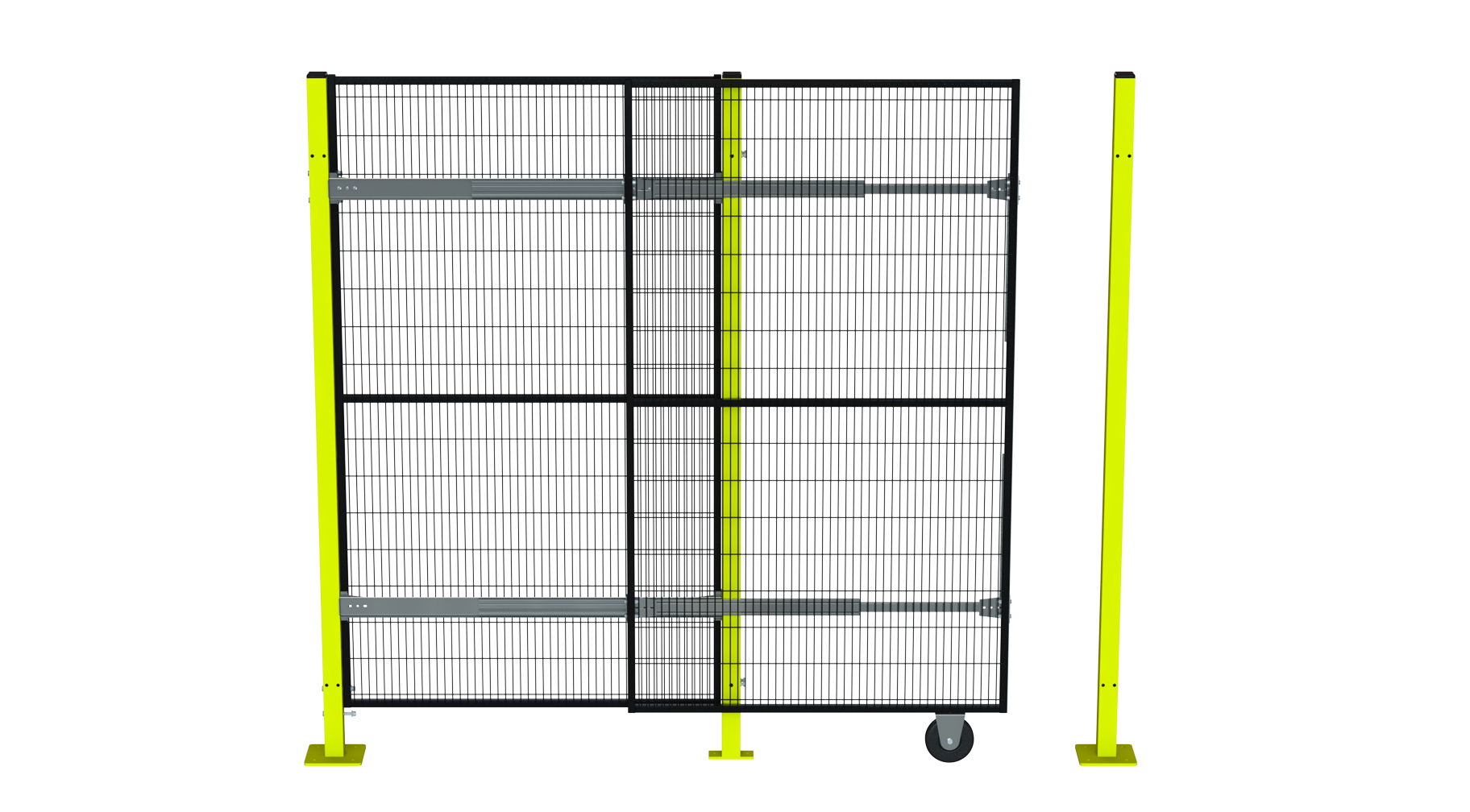

SLIDE® Safety Gate

SLIDE® Safety Gates are constructed using high-quality Q235 galvanized steel pipe and galvanized wire. Mesh anti-climbing provides a high level of safety. The door body link utilizes a robust two-way pull slide rail, ensuring stable and smooth push and pull operations with a light and seamless experience. Nano-ceramic pretreatment technology, in conjunction with AkzoNobel polyester powder, guarantees exceptional anti-corrosion characteristics. The products have obtained certification from TUV, a renowned organization known for conducting rigorous pendulum impact resistance tests. The structure design is characterized by simplicity and adherence to safety protection standards, as well as a vibrant color scheme.

Hotline:+086-311-8586 0535

Product Features

> SLIDE® Safety Gate are welded with high-quality Q235 galvanized steel pipe/galvanized wire. The material used for the panel frame is 20*20*1.5mm hot dip galvanized pipes, which effectively guarantees the overall strength of the product. The galvanized wire exhibits a minimum tensile strength of 400MP, while the solder joint demonstrates a tensile strength exceeding 2500N. 100*20 mesh anti-climbing, high safety.

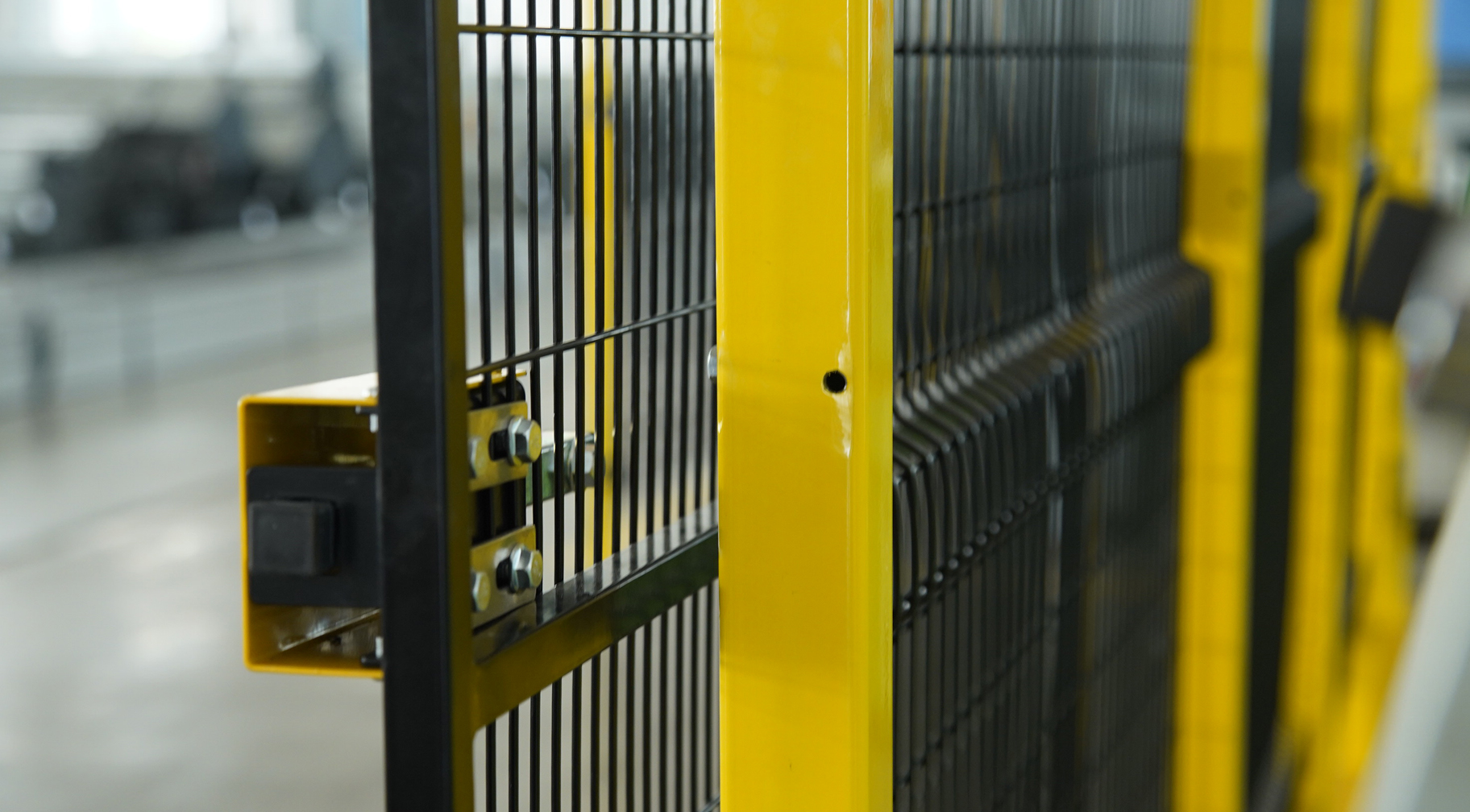

> The door body link adopts a heavy two-way pull slide rail, stable push and pull, smooth and light.
> The door posts are made of high-quality Q235 hot dip galvanized steel pipe material.> Nano-ceramic pretreatment technology and Akzonobel polyester powder to ensure high-quality anti-corrosion properties.
> The product is certified by TUV's pendulum impact resistance professional test.
> Simple structure design, in line with safety protection standards, bright color. Regular black RAL9005, yellow RAL1021. Customizable styles and colors can be readily customized to suit individual preferences and requirements.

SLIDE® Safety Gate

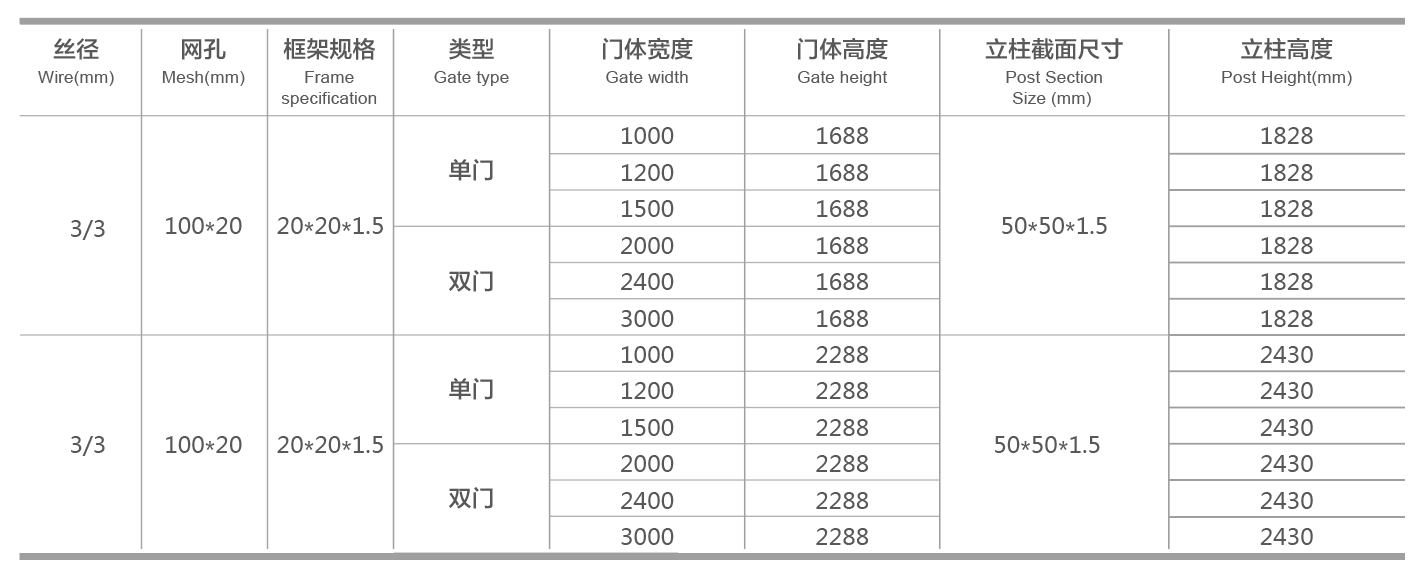

Technical specifications

TUV impact test
